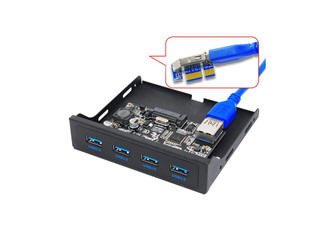

PCI-E to USB 3.0 PC Front Panel USB Expansion Card PCIE USB Adapter USB3.0 Front Panel Bracket PCI Express x1 Riser

3.5" bay $27, 5.25" bay $19

Features:

Front four-port USB 3.0 expansion card Directly lead from the PCI-E to the front of the chassis, more stable and more convenient, the front port can use four hard drives at the same time. The PCI-E interface is ultra-low 90 degrees. The interface is blocked and does not affect the use of the interface.

With self-powered module, no external power supply, all solid capacitors Each port has a separate interface protection insurance.

Specification:

Type: PCI-E 1X to Front 4 Port USB 3.0 Card Tray

Bus Modes: PCI-E X1 interface

Compatible Slot: PCI-E x1/x4/x8/x16

USB Interface: 4 x USB 3.0 Port

Transfer Rate: USB 3.0 5Gb/s

Package included:

1 x Front 4-Port USB 3.0 Tray

1 x PCI-E 1X Riser Card


USB 3.0 HUB 4 Ports Front Panel 3.5" bay to Motherboard 20 Pin header $20

·             USB 3.0 HUB 4 Ports Front Panel to Motherboard 20Pin Connector Cable for 3.5" Floppy Bay

·             Compliant with USB Base Specification 3.0

·             USB3.0 interface and 3.5inch bay of PC front panel

·             Compliant with USB 3.0 Super-Speed (5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed    (1.5Mbps)

·             Max. 900mA per port



4-Pin (PWM) Male to Female Extension Cable 12"

$3.99 qty discounts available

Y Splitter cable 4 Pin 1 to 2 converter 300mm Black Braided Sleeve

$3.99 qty discounts available

3-pin Fan Power Male to 4-pin Molex Male Cable, for Computer Fan, 6inch

Convert a 2-pin fan connector to a standard 4-pin power connector

Call/Email for availability

Black Sleeved PWM Fan Splitter Cable 1 to 2 Converter, 2 Pack

$7.99

  • Length 240mm, pack of two computer fan splitter cables
  • One-to-two PWM fan splitter
  • Beautiful all black sleeved cable
  • Supports 2 PWM fans from a single motherboard PWM header
  • Compatible with 4pin PMW fan connector and 3pin fan connector
3-pin Fan Power Extension Cable for Computer and CPU Fans   12" $2.49  ; 36" $3.49

The fan power extension cable gives extra reach to existing fan power cables by extending one 3-pin female to one 3-pin male.

Connector Types: 3-pin fan power male to 3-pin fan power female Color: Multi UL Listed: Yes Gauge: 26 RoHS: Yes Jacket: PVC Conductors: Copper
9-pin Serial to 10-pin Header Slot Plate F903-N     $3.50 Qty 1 - 9 ; $3.25 Qty 10 - 24; $3.00 25 or more; Low Profile add $9

Connectors DB9 Male, IDC 10. Works on most motherboards that have extra serial port headers. Low Profile Available too!

This version is also known as the "AT-EVEREX" version. It will not work if you need the "DTK" style. Most current motherboards will use this "AT-EVEREX" style , but if you have doubts contact your motherboard MFR.
CMOS BATTERY 2032      $2.50 Qty 1 - 4 ; $2.00 5 or more

3 Volt Lithium Cell Size battery by Toshiba and Sony. Most common replacement battery size for the CMOS Clock battery on motherboards.

Antec TrueQuiet 120 UFO 120mm Case Fan

Price: $9.99 Qty 3+ $8.99
  • Features:
    • 2-way switch to select fan speed
    • Blue LED
    • Uniquely-designed fan blades increase air flow while reducing turbulence and noise
    • Silicone grommets to reduce vibration
    • Toolless mounting pins for quick and easy installation
    • Included 3-pin to Molex adapter
  • Speed:
    • Low: 600 RPM
    • High: 1,000 RPM
  • Air Flow: 21.1 CFM / 0.6 m3/min @ 600 RPM; 46.3 CFM / 1.0 m3/min @ 1,000 RPM
  • Noise Level: 8.9 dBA @ 600 RPM; 19.9 dBA @ 1,000 RPM
  • Input Current: 0.06A @ 600 RPM; 0.12A @ 1,000 RPM
  • Input Power: 0.7W @ 600 RPM; 1.4W @ 1,000 RPM
  • Color: Black Frame, Orange Silicone Grommets, Circular LED in Blue
    		•
      Top Motor 80mm x 15mm 4pin PMW case fan/2500rpm/30.8CFM/27.30dBA

    Top Motor 70mm x 15mm 4pin PMW case fan/4500rpm/37.40CFM/38.44dBA

    Both Dual Ball Bearing $9

      Top Motor 80mm x 25mm 2600rpm/30.7dBa and 2200rpm/27.2dBa double ball bearing 3-pin fans

    Both Dual Ball Bearing $9
    120 x 120 x 25 mm DC Fan Top Motor 120mmx25mm case fan 1x bb 1800rpm 64.5CFM 32.8dBA

    $11.00 Qty 1 - 2; $10.00 Qty 3 - 4


    120 x 120 x 25 mm DC Fan Top Motor 120mmx25mm 2xbb case fan 2600rpm 96CFM 42.6dBA

    $13.00 Qty 1 - 2; $12.00 Qty 3 - 4

    4pin PWM type connection. Not the bigger 4pin Molex type

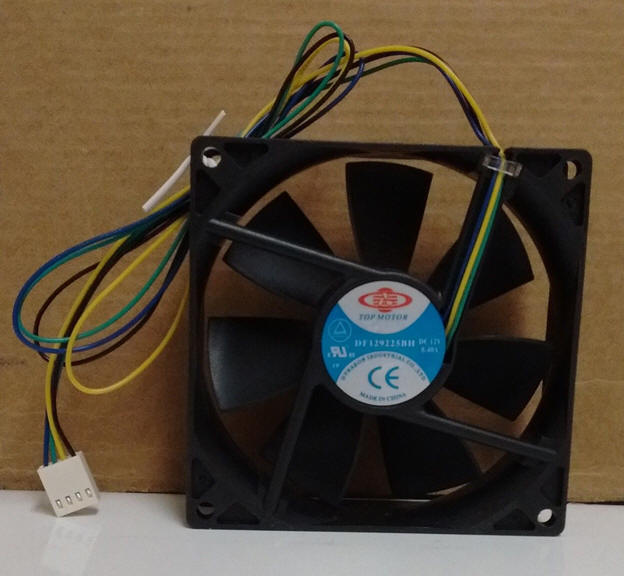

    Top Motor dual ball bearing 92mm PWMG case fan DF129225BH-PWMG

    $10.00 Qty 1 - 2; $9.00 Qty 3 - 4

    4pin PWM type connection. Not the bigger 4pin Molex type
    Top Motor 92mm Ball Bearing Case Fan DF129225PL-3/4G     $5.50 Qty 1 - 4 ; $5.00 5 or more

    Model No. DF129225_L Voltage(V) 12 Speed(RPM) 2500 Bearing(1) SPBQ Current(Amp) 0.17 Watts(W) 2.04 Air Flow(CFM) 43.36 Static Pressure (mm/H2O) 3.00 Noise(dBA) 31.92 PWM(2) v

    MTBF (Operating temp. 25°C): One Ball Bearing: 35,000 hours

    Items Descriptions Label Size 32mm Frame PBT+30%GF UL94V-0 (Black) Impeller PBT+15%GF UL94V-0 (Black) Weight 90±5 grams Operating Temperature - 10 °C ~ + 65 °C (65 %RH) Storage Temperature - 30 °C ~ + 70 °C (65 %RH) Vibration Test Displacement Amplitude: 0.75mm(Equivalent 10G) Frequency Range:10Hz<->55Hz/30SEC. Linear Scanning 120 Cycle Endurance Timer Per Axis: 30Min. Orientation: X,Y,Z. Drop Test Motor withstands one free body drop from 30 cm in high  onto 10 mm thickness of wooden board for each of the  three faces in minimum packing condition Acoustic Noise 32.6dBA – Curve (Max32.9dBA) Measuring Condition – Under rated voltage in semi-anechoic chamber equipment sound level meter

    Model Number System (example: DF128025SH-3/4G) D F 12 8025 S H -3/4 G Voltage: D: DC  A: AC Type: F: Fan B: Blower S: Overspec. Fan Voltage Range: 05: 5 V 12: 12V 24: 24V 48: 48V Size: L x W x H (unit: mm) Bearing System: S: Sleeve P: One Ball B: Dual Ball Q: Liquid System Speed: U: Super High H: High M: Midle L: Low E: Super Low Connector: -3: 3-pin with 3 wires connector -3/4: 3-pin to 4pin wires connector /2.0: 2-pin with 2 wires connector /2.54: 2.54-pin with 2 wires connector /2.5: 2.5-pin with 2 wires connector PWM: 4-pin pwm function with 4 wires connector
    Startech 70x15mm Replacement Ball Bearing Fan w/ TX3 Connector

    $7.50 Qty 1 - 2 ; $7.25 3 or more Sale price

    Click here for Specs
    Startech 70x10mm Replacement Ball Bearing Fan w/ TX3 Connector

    $7.75 Qty 1 - 2 ; $7.50 3 or more

    Click here for Specs
    Case Fan Filters

    Filter and grille                80mm $3.50 Qty 1 - 4      $3.00 5 or more  92mm add $.50, 120mm add $1.00

    Inexpensive way to protect your investment with a fan filter. with a cloth filter you can take out and clean.
    Chrome Case Fan Grill for exterior of Computer case Sale Price: $1.25 for 80mm; $1.50 for 92mm; $1.75 for 120mm

    Goes on top of case fan on the outside of case.
    Top Motor (12V) 40 x 40 x 10mm DC Fan Dual Ball Bearing-DF124010BM-3G

    $5.25 Qty 1 - 2; $5.00 3 or more

    Model No. DF124010_M
    Voltage(V) 12
    Speed(RPM) 5500
    Bearing(1) SB
    Current(Amp) 0.10
    Watts(W) 1.20
    Air Flow(CFM) 4.19
    Static Pressure (mm/H2O) 2.60
    Noise(dBA) 28.53


    (2) MTBF (Operating temp. 25°C): Sleeve Bearing: 20,000 hours, Dual Ball Bearing: 50,000 hours

    Items Descriptions
    Label Size 18mm
    Frame PBT+30%GF UL94V-0 (Black)
    Impeller PBT+15%GF UL94V-0 (Black)
    Weight 10±2 grams
    Operating Temperature - 10 °C ~ + 65 °C (65 %RH)
    Storage Temperature - 30 °C ~ + 70 °C (65 %RH)
    Vibration Test Displacement Amplitude: 0.75mm(Equivalent 10G)
    Frequency Range:10Hz<->55Hz/30SEC.
    Linear Scanning 120 Cycle
    Endurance Timer Per Axis: 30Min.
    Orientation: X,Y,Z.
    Drop Test Motor withstands one free body drop from 30 cm in high
    onto 10 mm thickness of wooden board for each of the
    three faces in minimum packing condition
    Acoustic Noise 21.3dBA – Curve (Max21.6dBA)
     Measuring Condition – Under rated voltage in semi-anechoic chamber equipment sound level meter
    Top Motor (12V) 50 x 50 x 10mm DC -DF125010BM-3

    $5.50 Qty 1 - 2 ; $5.25 3 or more

    Model No. DF125010_M
    Voltage(V) 12
    Speed(RPM) 4500
    Bearing(1) SB
    Current(Amp) 0.15
    Watts(W) 1.80
    Air Flow(CFM) 9.30
    Static Pressure (mm/H2O) 1.90
    Noise(dBA) 28.00
    Items Descriptions
    Label Size 20mm
    Frame PBT+30%GF UL94V-0 (Black)
    Impeller PBT+15%GF UL94V-0 (Black)
    Weight 17±5 grams
    Operating Temperature - 10 °C ~ + 65 °C (65 %RH)
    Storage Temperature - 30 °C ~ + 70 °C (65 %RH)
    Vibration Test Displacement Amplitude: 0.75mm(Equivalent 10G)
    Frequency Range:10Hz<->55Hz/30SEC.
    Linear Scanning 120 Cycle
    Endurance Timer Per Axis: 30Min.
    Orientation: X,Y,Z.
    Drop Test Motor withstands one free body drop from 30 cm in high
    onto 10 mm thickness of wooden board for each of the
    three faces in minimum packing condition
    Acoustic Noise 21.3dBA – Curve (Max21.6dBA)
     Measuring Condition – Under rated voltage in semi-anechoic chamber equipment sound level meter

    Top Motor 60x60x15mm, 2 ball, 3 pin, Rohs Compliance     $5.50 Qty 1 - 4 ; $5.00 5 or more

    Speed: 5000rpm Air Flow: 18.5 CFM Noise: 33 dBA Current: 0.15A Power: 1.8W
    Top Motor 2 inch case fan 50x50x20mm double ball bearing

    $6 Qty 1 - 4; $5.50 5 or more
